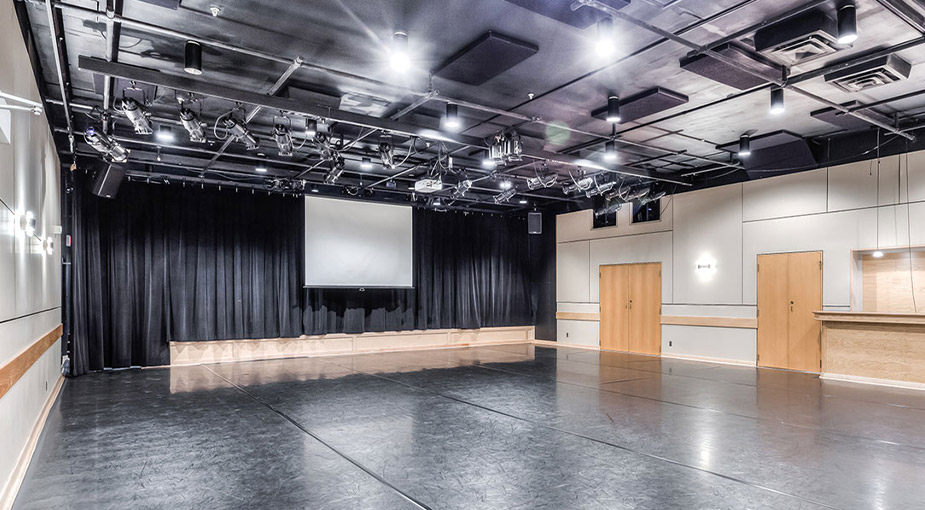

Studio Theatre

Technical information and seating arrangements for the Studio Theatre at the Oakville Centre.
Our Studio Theatre offers seating for up to 114 patrons in a cabaret-style arrangement. General admission performances have seating for 116 patrons.

Seating arrangements

Located on lower level of the Oakville Centre, the Studio Theatre holds 116 seats in a general admission style and has room for 20 tables of six people and two tables of four in a cabaret-style setting (additional cost to rent the tables and linens is applicable). The bar is located at the side of the room and serves beverages only.

Technical information


  • Width: 28 feet
  • Height: 10 feet six inches to underside of grid
  • Depth: 11 feet to backdrop plus 30 inches crossover
  • Loading is through the stage door limited by a 40 inches wide by 80 inches high door


  • 55 feet three inches by 33 feet 10 inches including stage

These documents require the free Adobe Reader. For AutoCad versions of the theatre drawings, please contact the technical office.


  • GrandMA onPC with onPC fader wing
  • 48 Strand CD80 2.4Kw dimmers (dimmer per circuit)


  • All circuits are 20A 125V new style twistlock
  • 48 circuits distributed on circuit strips throughout the grid


  • 15 ETC Source Four 36 degree 575W
  • 24 Strand six inch Fresnelites 500W 12 comes with barn doors
  • Two ETC Source Four Lustr+ 50 degree LED 150W

Colour media

  • We stock all Roscolux two digit and three digit colours

House lighting plot

  • There is a house lighting plot hung and focused at all times contact the technical office for details


  • Yamaha MG206C-USB 16 mic inputs, four stereo line inputs, four aux sends

Front Of House

  • Soundcraft Performer 3, 32 mono mic inputs, eight line inputs, 80 total channels to mix, four FX busses
  • Soundcraft Mini Stagebox 32, 32 mic line, eight line out


  • Two EAW JFX 260 speakers
  • Four EAW SM200iH monitors


  • One QSC PLX 2402
  • One QSC PLX 2502
  • One QSC PLX 2502 booth monitors


  • Assorted mics as available from the auditorium


  • One Denon DN-C620 CD player


  • Clear-com PS464 located in auditorium
  • MR102A wall mount station (located in the booth)
  • Headsets and belt packs available as required from the auditorium

Video projectors

  • Panasonic PT-RW430UK projector (3500 lumens) comes with hanging bracket


  • Six feet by eight feet Draper manual projection screen


  • Two Denon DN-500BD Blu-ray players
  • Legs, one pair - each panel 10 feet four inches high by eight feet wide black velour, 50 per cent fullness
  • Backdrop, six panels - each 10 feet high by eight feet wide black velour, 50 per cent fullness
  • Step ladder - eight feet tall
  • One Yamaha C2 baby grand piano five feet eight inches
  • Please contact the technical office for riser availability
  • Laundry facilities are available at the theatre
  • The theatre has an iron, ironing board and professional steamer
